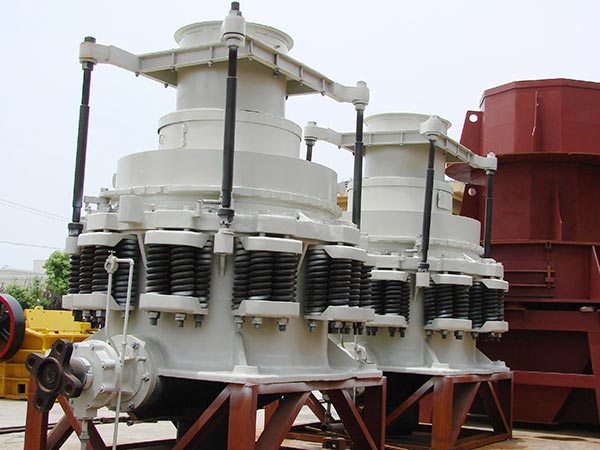

Spring Cone Crusher

Spring Cone crusher is used for crushing of ores and rocks, the advantages are: reliable structure, high efficiency, easy to adjust and economical. The safety spring system is the overload protection device, which makes foreign materials go through the machine without bring any hurt to it. The sealing models are oil and water, which segregate the stone powder and lubricating system. The crushing chamber is decided by the purpose of ore, the standard model is suitable for medium crushing, the medium model is suitable for fine crushing and the short head model is suitable for fine crushing.

Features

It is made the best use of to realize medium crushing and fine crushing in medium and small sized dressing plants. Cone crusher adopts the pushing type structure of jaw plate hanging on the axillare. Cone crusher has advantages of high production, the long service life of the toothed plate, lower energy consumption and regular particle size.

Advantage

1. High performance and lower cost.
Optimized chamber-type, combined speed with stroke reasonably, stable and reliable performance, high production capacity, low production cost, and final cubic products can be increased with uniform size and reasonable grade.
2. Operate safety and reliability
With large-diameter spindle and heavy main frame, the equipment are strong, durable, and operate reliability. The independent multi-point control oil lubricating system ensures the double protection of the bearing lubrication. The automatic safety protection can be achieved by over-iron protection device and the automatic control system.
3. Easy to operate and maintain
All the parts can be disassembled from top or sides, so that the stable and movable cones assembly can be disassembled easily. The crushing chamber can be cleaned by the hydraulic clearing chamber quickly, so it can greatly reduce the down time.

Applications

This series of cone crusher is used for crushing ores and rocks, and the advantages are: reliable structure, high efficiency, easy adjustment and economy.

Principles

When Spring cone crusher works, its motor turns around via the belt pulley or the coupling, the transmission shaft and the cone section do the swaying movement around a certain point, driven by the eccentric locking collar, thus making the crushing wall of the cone crusher move back and forth from the rolling mortar surface installed in the adjusting sleeve. Materials get impacted, squeezed and bent in the crushing cavity, thus finishing the crushing process. The motor of cone crusher drives the eccentric collar to rotate via the bevel gear and makes the crushing cone do swaying movement. The crushing cone moves back and forth from the fixed cone, thus finishing the crushing and discharging processes. The connecting point of the supporting sleeve and the frame is compressed tight by the spring. When uncrushed materials like metal bulks fall into the crusher cavity, the spring will shrink and the materials will discharge out of it, thus protecting the machine from being damaged.
