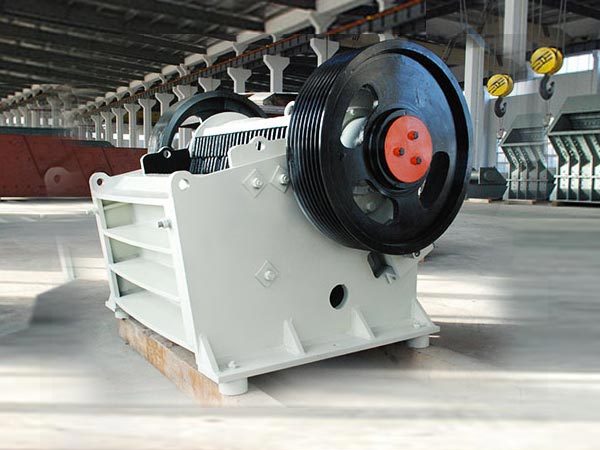

European Jaw Crusher

The European Jaw Crusher is suitable to crush the ore,rock,slag,etc.whose compression strength is less than 280 Mpa. The Max granularity should be less than the technical parameter. And it is also widely used as medium crushing and fine crushing in the metallurgy, mining, chemical, cement，construction, refractories and ceramics and other industrial fields. Compared with the traditional jaw crusher, the European Jaw Crusher with high-strength materials, advanced manufacturing process, with higher structural strength, higher reliability, greater crushing ratio, higher yield, more comprehensive cost Low advantage.

Advantage

1. Adopting the world-class manufacturing technology, selecting the most high-end production materials;
2. More advanced movable jaw assembly and durable;
3. Bearing seat with integral cast steel structure;
4. Using finite element analysis technology, higher intensity;
5. The crushing cavity adopts the symmetrical V-shaped structure, making the actual feed opening width in compliance with the feed opening width in name;
6. Fast discharge opening adjustment device;
7. Larger bearings and stronger carrying capacity;
8. Toothed guard plate, increasing the effective length of the jaw plates and higher output.

Applications

The European Jaw Crusher is suitable to crush the ore,rock,slag,etc.whose compression strength is less than 280 Mpa.

Principles

The motor drives the belts and the belt wheels, and make the movable jaw up and down by the eccentric shaft. When the movable jaw descends, the angle between the fixed jaw and the movable jaw becomes smaller, and the materials can be crushed; when the movable jaw descends, the angle between the fixed jaw and the movable jaw becomes bigger; and the movable jaw plate leaves from the fixed jaw by the function of the tension rod and the spring. And then the crushed materials are discharged from the lower outlet of the crushing cavity.
