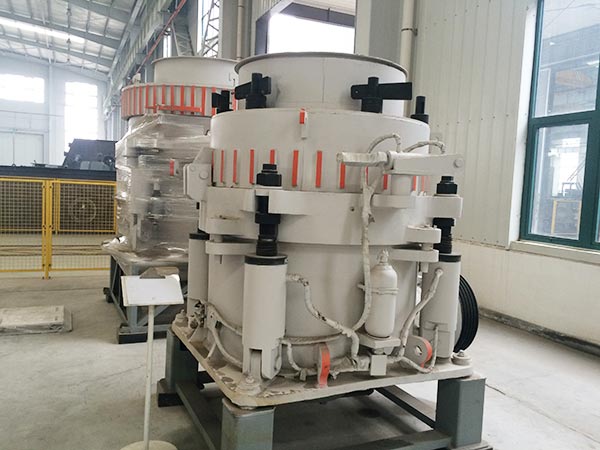

Hydraulic Cone Crusher

The crushing principle of hydraulic cone crusher machine is finished between fixed cone plate and movable cone plate. The motor drives the horizontal axis of the crusher machine through triangle belt and pulley, the horizontal axis drives the eccentric shaft bush to rotate through gear transmission. The eccentric shaft drives the main shaft to make the movable cone plate swing at a regulated track from time to time, the materials are crushed due to constant pressed and crooked in the crushing cavity. The finished products are discharged from the discharging opening.

Features

Broken ratio and high efficiency;Finished grain excellent;High discharge automation;Thin oil lubrication system.

Advantage

1. Full hydraulic protection and adjustment device, which is labor and time savings.
2. Application of materials-beds pressure crushing way, high utilization rate, flawless particle, uniform size.
3. Newest PLC automatic controlling system; provide reliable and safe protection.
4. Equipped with remote touch-screen operation interface and Display live working status.

Applications

This series of cone crusher is used for crushing ores and rocks, and the advantages are: reliable structure, high efficiency, easy adjustment and economy.

Principles

The rotating of motor drives pulley or coupling, motor shaft and cone axis to drive eccentric shaft to do periodic rotation-swing movement. After materials entering into the crushing cavity, they will be crushed by mutual impact extrusion, grinding and rubbing of the eccentric shaft and mortar roll, so as to achieve desired crushing effect. Hydraulic overload system can enlarge discharge hole to discharge obstruction when the machine is jammed, so it plays a positive role as insurance and significantly reduces maintenance and increases productivity.
