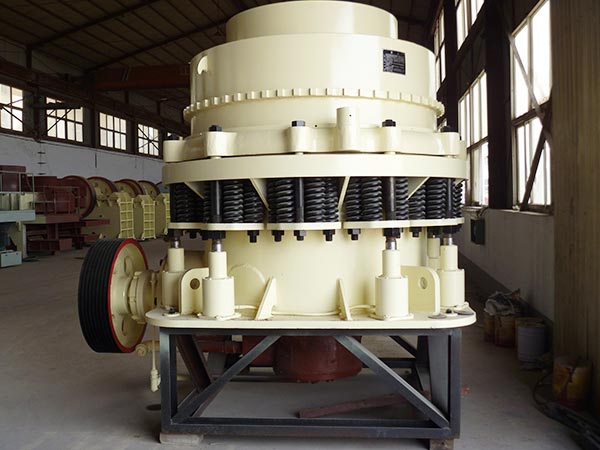

Single-Cylinder Cone Crusher

Single-cylinder cone crusher is divided into standard type and short-headed type which are used for medium crushing and fine crushing respectively. It is suitable for crushing all kinds of ores and rocks with high and over-medium hardness in medium, construction, water and electricity, transportation, chemistry and building material industry. Especially in the metal ore and construction of sand and gravel material is the most widely used.

Features

1. Easy operation, high reliability.
2. Significantly improve reduction ratio and yield
3. Easy maintenance, lower costs
4. Hydraulic adjustment, oil lubrication.
5. Save time and effort for maintenance.
6. Reduce downtime.

Advantage

1. Large processing capacity and high crushing efficiency.
2. Laminating crushing and excellent particle shapes of finished products.
3. Multiple chambers combined with the best strokes, adapt to the requirement of various kinds of particle sizes.
4. Long lifespan liner.
5. Simple structure, convenient maintenance and lower operating cost.

Applications

Single-cylinder hydraulic cone crusher, is widely being used in the intermediate, fine and ultra-fine crushing process, and this machine is researched and developed by adopting the world’s most advanced crushing technology, as well as integrating mechanics, hydraulics, electric, intelligent control and other technologies together.

Principles

Motor drives small gear of single cylinder cone crusher, small gear drives big gear, and big gear component (big gear, big gear frame, and eccentric steel sets) drives eccentric sets component (eccentric cylinder sets, and eccentric copper sets) and spindle component (spindle, inner cone, and lining plate of inner cone) to revolute in copper lining sets regarding theory vertical line as Center. When the single cylinder hydraulic cone crusher machine runs empty, eccentric components “with” spindle components to revolute together with the large gear, after the crushing cavity is fed materials, spindle Assembly (spindles, inner cone) rotates slowly in eccentric copper sleeve under the resistance of materials. Orbit of inner cone likes swing back and forth in the crushing cavity while slowly rotating, and will be squeezed and broken by oscillating inner cone.
